Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
Sectional Overhead Door
video
video

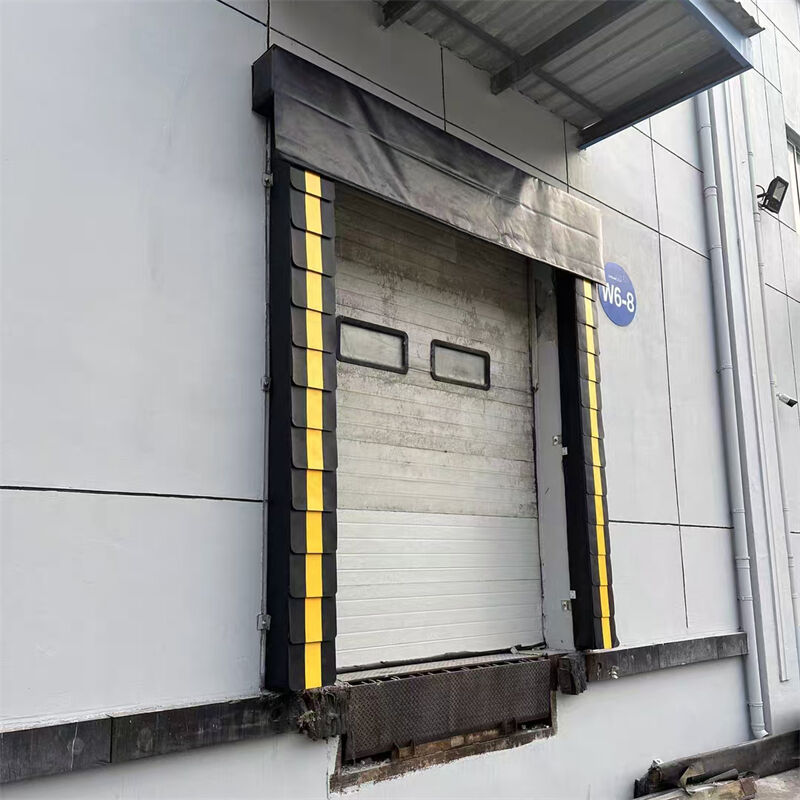

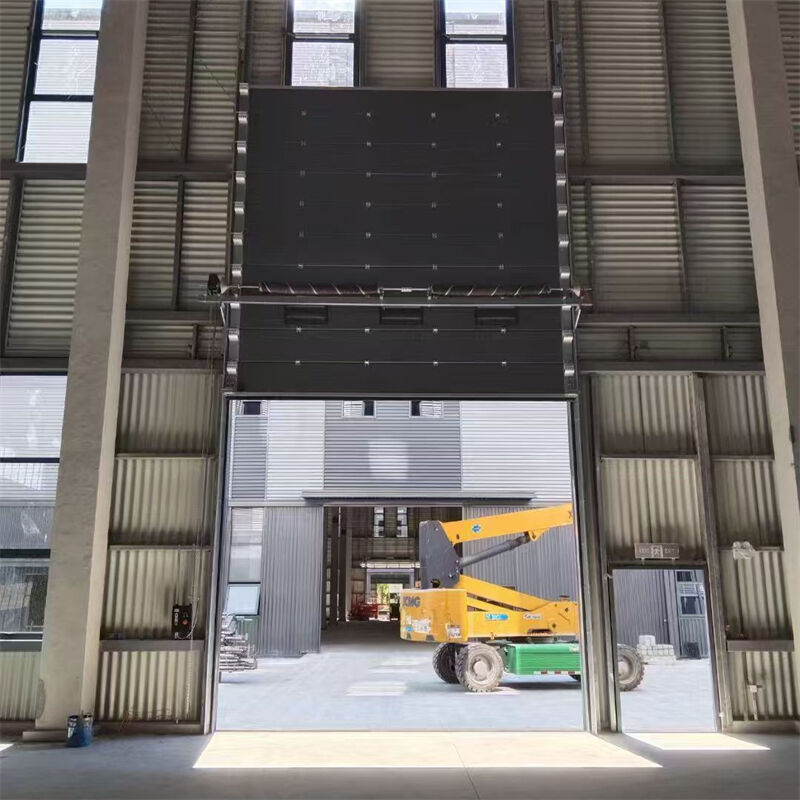

Manufacturing plant loading bays are critical connection points between production lines, warehouses, and transportation vehicles. Continuous loading and unloading require a durable, efficient, and secure door system that minimizes downtime and supports smooth logistics. Our Industrial Sectional Overhead Door is engineered for heavy-duty industrial environments, helping manufacturers improve loading efficiency, protect products, and reduce long-term operating costs.
Manufacturing plants depend on fast truck turnaround and uninterrupted material flow. A reliable Industrial Sectional Overhead Door reduces waiting time and keeps loading operations running on schedule.
Dust, rain, wind, and temperature changes can affect raw materials and finished goods. Insulated door panels and full perimeter seals provide effective environmental protection.
Built for high-cycle applications, the door operates smoothly throughout multiple loading shifts with minimal maintenance requirements.
|
|
|
Manufactured with reinforced steel tracks, industrial torsion springs, and durable sandwich panels for long-lasting performance in demanding factory environments.
Polyurethane-filled insulated panels help reduce heat loss, improve indoor climate control, and lower overall energy consumption.
Standard safety features include spring break protection, cable break devices, anti-fall mechanisms, and emergency manual operation to ensure reliable daily performance.
Available with standard lift, high lift, vertical lift, manual operation, electric motors, remote control, and automation systems to match different loading bay layouts.
Fast and reliable door operation allows forklifts and trucks to move efficiently, reducing loading delays and increasing throughput.
Industrial-grade components are designed for frequent opening cycles, helping reduce unexpected repairs and equipment downtime.
Smooth operation and integrated safety devices create a safer loading environment for employees, forklifts, and transport vehicles.
Custom door sizes, lifting methods, windows, and pedestrian access doors ensure the system fits your specific production facility.
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.3 - 0.6mm Color-Coated Steel |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm / 80mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 10-15 m / min |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Changzhou YOHO Industrial Door Co., Ltd. specializes in manufacturing industrial door systems and loading dock equipment for factories, warehouses, logistics centers, and industrial buildings worldwide.
Every Industrial Sectional Overhead Door is produced using advanced manufacturing equipment and strict quality control procedures to ensure consistent quality and long-term reliability.
|
|
|
Manufacturing loading bays require reliable doors that support continuous truck traffic, protect products during loading, and improve operational efficiency. Industrial sectional overhead doors are built specifically for these demanding conditions.
Yes. It can work seamlessly with dock levelers, dock shelters, loading bay seals, and warehouse management systems.
Absolutely. Heavy-duty torsion springs, reinforced tracks, and industrial motors are designed for continuous daily opening and closing.
Yes. We provide customized dimensions, insulation thickness, colors, lifting methods, control systems, vision panels, and pedestrian doors.
Looking for a reliable Industrial Sectional Overhead Door for your manufacturing plant loading bays?
Changzhou YOHO Industrial Door Co., Ltd. offers factory-direct manufacturing, OEM customization, technical support, and competitive pricing for manufacturers, contractors, distributors, and industrial project buyers.
Let us help you improve loading efficiency, enhance workplace safety, and optimize your manufacturing logistics with professional industrial door solutions.
