Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
Garage Door

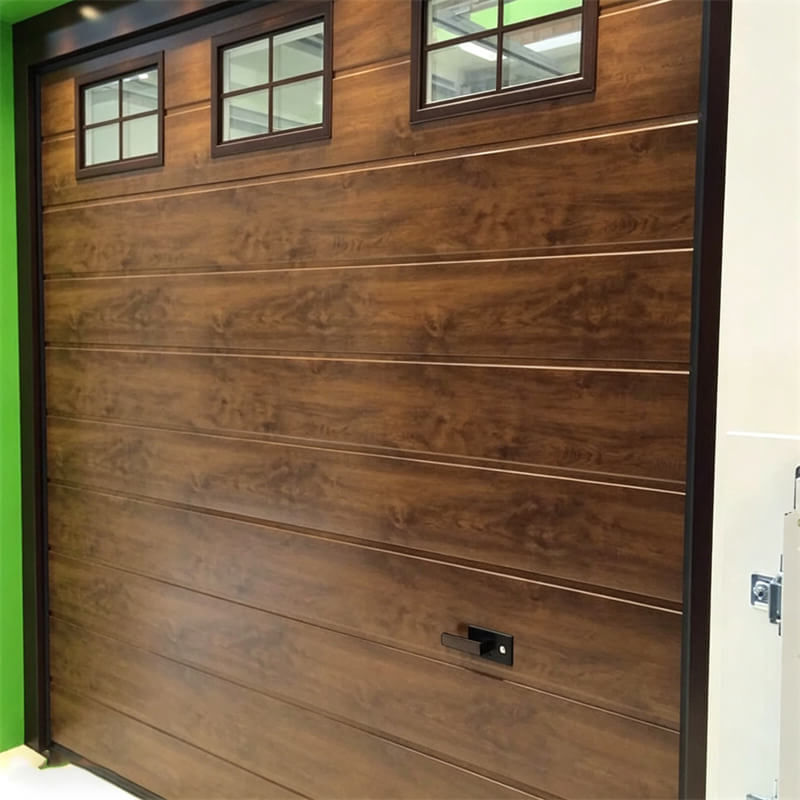

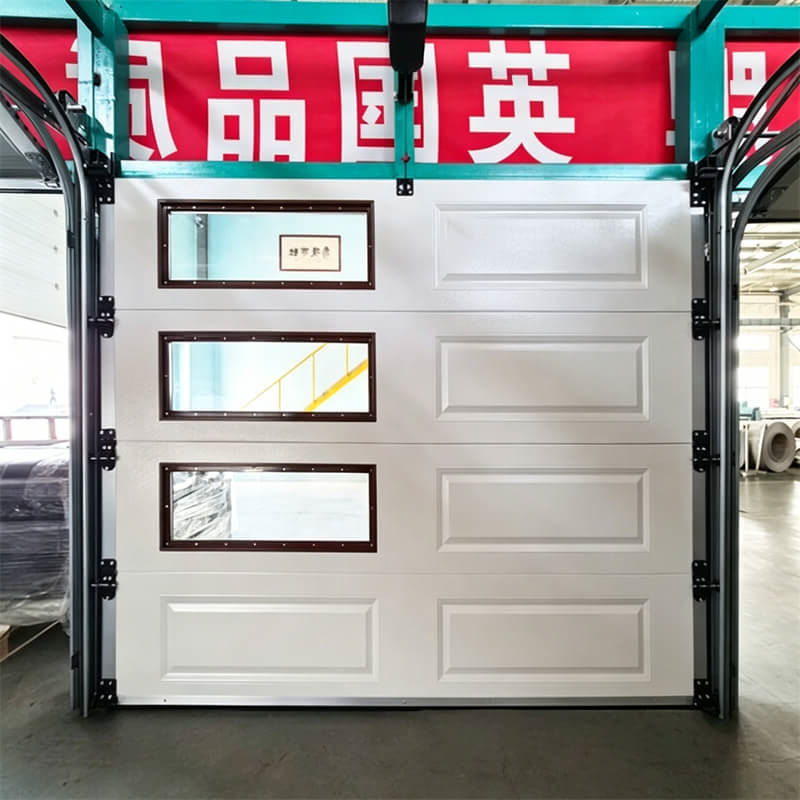

The Modern Designed Automatic Steel Sectional High Speed Garage Door With Windproof is engineered for demanding commercial and industrial applications requiring fast operation, thermal insulation, and strong wind resistance. Combining reinforced steel sectional panels with a high-speed motorized lifting system, this high speed garage door delivers reliable performance in logistics centers, underground parking facilities, workshops, and commercial buildings.
Designed with insulated sandwich panels and durable hardware systems, this steel sectional garage door minimizes energy loss while ensuring smooth, stable, and quiet operation. It is an ideal automatic garage door solution for projects requiring efficiency, safety, and modern architectural appearance.
| Item | Specification |
|---|---|
| Door Type | Sectional Garage Door |
| Opening Method | Automatic / Manual |
| Panel Thickness | 40mm standard (customizable) |
| Steel Thickness | ≥ 0.326mm inner and outer sheets |
| Insulation Material | CFC-free Polyurethane Foam |
| Foam Density | 48 ± 2 kg/m³ |
| Thermal Insulation | Excellent heat and sound insulation |
| Surface Finish | PE coating, three-coat two-bake process |
| Paint Thickness | Front ≥ 25μm, Back ≥ 10μm |
| Panel Flatness Tolerance | ±0.5mm |
| Colors | White, Silver Gray, Dark Gray, Red, Wood Grain |
| Lift Type | Standard Lift (customized available) |
| Motor Type | Automatic Garage Door Opener |
| Control Options | Remote Control, Wall Switch, Smart App |
| Certification | CE Standard |
| Customization | Size, Color, Surface Pattern, Windows |
Used for office buildings, shopping malls, and underground parking facilities.
Provides fast access for loading and unloading operations.
Suitable for production workshops and heavy-duty industrial environments.
Supports high-frequency vehicle movement with reliable automation.
Combines industrial performance with modern visual aesthetics.
Manufactured using galvanized steel sheets and polyurethane foam injection technology.
Torsion spring systems provide stable lifting force and smooth movement.
Heavy-duty motor offers strong power, low energy consumption, and long service life.
Infrared protection and automatic reverse improve operational security.
The reinforced tracks, heavy-duty hinges, and strengthened panel structure improve wind resistance.
Yes, the motor system supports adjustable opening and closing speeds.
Yes, custom dimensions and lifting methods are available.
Yes, the panels are filled with high-density polyurethane foam insulation.
It is suitable for commercial buildings, warehouses, factories, and underground parking systems.
Yes, OEM and ODM manufacturing services are supported for distributors and project contractors.
