Batman Single Channel Vehicle Pedestrian Separation Radar For Smart Access Control
  • Name
  • Name

Batman Single Channel Vehicle Pedestrian Separation Radar For Smart Access Control

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
CE
Model Number
PLUTO
Technology:
Doppler Radar
Transmission Frequency:
24.125 GHz
Transmission Power:
<20 DBm
Detection Height:
2.5 M – 7 M
Adjustment Angle:
0° – 180° (Vertical)
Detection Speed:
5 Cm/s – 25 Km/h
Temperature Range:
-30°C To +60°C
Dimensions (incl. Bracket):
162 Mm × 110 Mm × 65 Mm
Cable Length:
5 M
Application:
Industrial Entrances/Exits, Garage Entrances/Exits, Barrier Gate Entrances/Exits, Intelligent Control Systems
Highlight:

Smart Access Control Radar

,

Pedestrian Separation Radar

,

Batman Vehicle Pedestrian Separation Radar

Product Description

Product Overview

Reliable Vehicle-Pedestrian Separation Radar for Intelligent Entry Management

Batman Single-Channel Vehicle-Pedestrian Separation Radar is a cost-effective and efficient radar sensor designed for smart access control systems. It accurately distinguishes pedestrians and vehicles while filtering lateral motion, ensuring precise triggering and reducing false openings. Widely used in industrial entrances, parking systems, and barrier gates, it enhances automation efficiency and safety.

Batman Single Channel Vehicle Pedestrian Separation Radar For Smart Access Control 0

Technical Specifications

Parameter Specification
Application Technology Doppler Radar
Operating Frequency 24.125 GHz
Transmit Power < 20 dBm
Detection Height 2.5 m – 7 m
Detection Speed 5 cm/s – 25 km/h
Angle Adjustment 0° – 180° (Vertical)
Power Supply 12 – 36V AC/DC
Operating Current Max. 75 mA
Temperature Range -30°C to +60°C
Protection Rating IP65
Relay Output Max. 48V AC/DC, Max. 1A
Cable Length 5 m / 6 m (Optional)
Dimensions (with bracket) 162 × 110 × 65 mm
Weight 550 g

Applications of Vehicle-Pedestrian Separation Radar

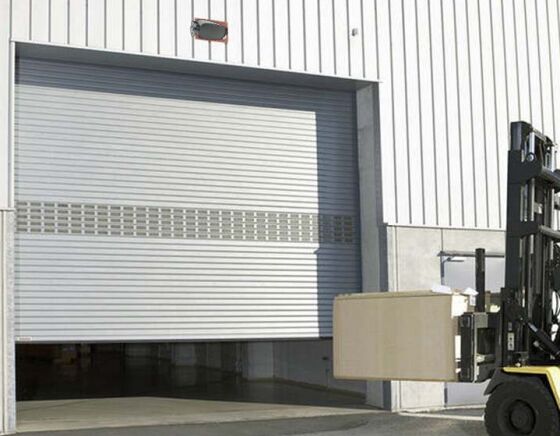

Industrial Entrance Control

  • Efficient Access Management

Ensures accurate detection and smooth operation at factory entrances.

  • Reduced False Triggering

Filters irrelevant motion to improve system stability.

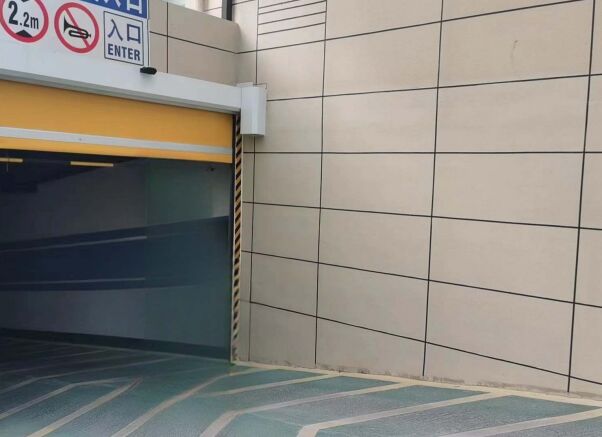

Parking Garage Entrance

  • Smart Vehicle Detection

Accurate detection for vehicles entering and exiting parking facilities.

  • Contactless Automation

Improves user experience with automatic opening.

Barrier Gate Systems

  • Alternative to Loop Detectors

No need for ground cutting or embedded wiring.

  • Faster Deployment

Reduces installation complexity and maintenance cost.

Garage Door Automation

  • Reliable Opening Trigger

Ensures consistent detection performance in residential and commercial garages.

Smart Traffic Control Systems

  • Intelligent Motion Detection

Enhances automation efficiency and safety in access control systems.

Why Choose Batman Vehicle-Pedestrian Separation Radar

  • Cost-Effective Alternative to Loop Detectors

No ground excavation required, saving labor and installation costs.

  • Improved Efficiency

Reduces unnecessary openings and enhances traffic flow control.

  • Easy Installation

Quick setup without complex wiring or civil work.

  • Stable Outdoor Performance

Reliable operation in various weather conditions.

FAQ – Vehicle-Pedestrian Separation Radar

Q1: What is a Vehicle-Pedestrian Separation Radar?

A: It is a radar sensor that distinguishes between pedestrians and vehicles, enabling intelligent and efficient access control.

Q2: Can it replace loop detectors?

A: Yes, it provides a non-invasive alternative without the need for ground installation.

Q3: Does it work in bad weather?

A: Yes, it performs reliably in rain, snow, and other outdoor conditions.

Q4: What is the installation height range?

A: It can be installed between 2.5m and 7m depending on the application.

Q5: Is it suitable for industrial use?

A: Yes, it is widely used in industrial entrances, parking systems, and barrier gates.
