0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access
  • Name
  • Name

0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Stacking Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness:
0.8–1.2 Mm
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Name:
High-Speed PVC Industrial Door
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Door Width:
1000mm–12000mm
Door Height:
1500mm–12000mm
Opening Speed:
0.6–1.2 M/s (adjustable)
Closing Speed:
0.6 M/s (adjustable)
Application:
Large Openings
Highlight:

Industrial Fast Access Stacking Door

,

PVC Curtain High Speed Stacking Door

,

Fast Access High Speed Stacking Door

Product Description
High Speed Stacking Door Overview
This heavy-duty industrial fast door is engineered for large openings, high wind resistance, and frequent operation in demanding environments including steel plants, logistics hubs, and manufacturing facilities. Featuring a reinforced stacking structure and servo control system, this industrial high speed door delivers rapid opening speeds, superior sealing, and reliable performance in harsh conditions.
Key Features
  • Heavy-Duty Stacking Structure: Stable operation for oversized industrial door openings up to 12 meters
  • High Speed Operation: Opening speeds up to 1.2 m/s for improved logistics efficiency and reduced energy loss
  • Superior Wind Resistance: Rated for Class 6 wind resistance, reinforced to Class 8 for extreme industrial environments
  • Flexible PVC Curtain System: Durable PVC curtain (0.8-1.2 mm) with anti-tear and wear-resistant properties
  • Industrial Grade Servo Control: Advanced DSP servo system ensures precise positioning, stable operation, and extended lifespan
  • Multi-Layer Safety Protection: Comprehensive safety features including infrared sensors, emergency stop, torque protection, and obstacle detection
Technical Specifications
Parameter Description
Maximum Dimensions Door width: 1000mm-12000mm, Door height: 1500mm-12000mm
Operating Speed Opening speed: 0.6-1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8-1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation Manual opening capability using standard wrench during power failure or malfunction
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54 rated for waterproof and dustproof performance in harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional controls: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 0
Installation Requirements
All measurements are taken indoors, with at least three points measured for each value:
  • H - Doorway height: Distance from floor to top of doorway
  • B - Doorway opening width: Distance from left edge to right edge of doorway
  • h - Ceiling clearance: Distance from top of doorway to ceiling (minimum 900 mm)
  • b1/b2 - Side clearance: Distance from doorway edges to obstacles on left/right sides (minimum 350 mm each)
When measuring H and B, use the maximum value as final dimension. When measuring h, b1, and L, use the minimum value as final dimension.
Available Color Options
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 1
Advanced Control System
  • Servo Control with DSP Chip: High precision control with torque loop, position loop, and speed loop fully closed
  • Encoder Positioning System: Accurate door positioning without electromagnetic brake
  • Fault Detection & LED Display: Real-time error code display for simplified maintenance
  • Multiple Control Options: Radar sensor, loop detector, remote control, pull cord switch, and interlock system
Industrial Applications
  • Steel Plants: Engineered for high temperature, dust-heavy environments with large openings
  • Logistics & Warehousing: Optimizes efficiency for high-frequency forklift traffic
  • Manufacturing Facilities: Ideal for production zones requiring fast and safe separation
  • Heavy Industry Workshops: Handles large equipment access and extreme working conditions
Unique Advantages
  • Designed for Large Openings: Perfect solution for oversized industrial entrances where traditional roll-up doors are insufficient
  • Energy Saving Performance: Fast opening/closing reduces air exchange and minimizes energy loss
  • High Durability: Dustproof, waterproof (IP54), and corrosion-resistant materials for harsh conditions
  • Low Maintenance Cost: Robust structure and intelligent control systems reduce operational downtime
Customization & Manufacturing
  • OEM & ODM Customization: Available custom sizes, colors, materials, and control systems
  • Professional Manufacturing: Full production control from raw materials to finished doors
  • Global Export Experience: Suitable for European, North American, and worldwide industrial markets
Frequently Asked Questions
What is a High Speed Stacking Door?
A vertically stacking industrial fast door designed for large openings and high-frequency operation in demanding industrial environments.
What is the maximum size available?
Up to 12 meters in width and 12 meters in height for large industrial entrances.
Can the door work in strong wind conditions?
Yes, it supports wind resistance up to Class 8 with appropriate reinforcement.
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 2 0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 3
Tags:

Safety High Speed Stacking Door,

High Speed Industrial Garage Doors,

Insulated Industrial Garage Doors

Recommended Products
1.2 m/s Opening Speed High Speed Stacking Door Class 8 Wind Resistance Customizable Size up to 12x12m

1.2 m/s Opening Speed High Speed Stacking Door Class 8 Wind Resistance Customizable Size up to 12x12m

Contact Now
Wind Resistance Class 6 High Speed Stacking Door Adjustable Speed 0.6-1.2 m/s PVC Door Curtain 0.8-1.2 mm

Wind Resistance Class 6 High Speed Stacking Door Adjustable Speed 0.6-1.2 m/s PVC Door Curtain 0.8-1.2 mm

Contact Now
Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings

Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings

Contact Now
0.8–1.2 Mm PVC Door Curtain Thickness Industrial Fast Door Solution For Across Logistics Manufacturing

0.8–1.2 Mm PVC Door Curtain Thickness Industrial Fast Door Solution For Across Logistics Manufacturing

Contact Now
Industrial High Speed Stacking Door 0.75-1.5KW Power Heavy Duty Fast Door System For High-demand Environments

Industrial High Speed Stacking Door 0.75-1.5KW Power Heavy Duty Fast Door System For High-demand Environments

Contact Now
380V 220V Voitage High Performance Industrial Door System For Facilities Requiring Fast Access

380V 220V Voitage High Performance Industrial Door System For Facilities Requiring Fast Access

Contact Now
High Overload Capacity High Speed Stacking Door For Warehousing / Logistics Centers video

High Overload Capacity High Speed Stacking Door For Warehousing / Logistics Centers

Contact Now
Products
PRODUCTS DETAILS
Products

Industrial High Speed Door

Sectional Overhead Door

Loading Dock Leveler

High Speed Stacking Door

High Speed Freezer Door

Spiral High Speed Door

Cold Storage Door

Loading Dock Shelter

Industrial Door Parts

Clean Room Door
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access
  • Name
  • Name
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access
MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Stacking Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness:
0.8–1.2 Mm
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Name:
High-Speed PVC Industrial Door
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Door Width:
1000mm–12000mm
Door Height:
1500mm–12000mm
Opening Speed:
0.6–1.2 M/s (adjustable)
Closing Speed:
0.6 M/s (adjustable)
Application:
Large Openings
Minimum Order Quantity:
IUNIT
Price:
negotiation
Packaging Details:
plywood package
Delivery Time:
10~15DAYS
Payment Terms:
T/T
Supply Ability:
300 unit per month
Highlight

Industrial Fast Access Stacking Door

,

PVC Curtain High Speed Stacking Door

,

Fast Access High Speed Stacking Door

Product Description
High Speed Stacking Door Overview
This heavy-duty industrial fast door is engineered for large openings, high wind resistance, and frequent operation in demanding environments including steel plants, logistics hubs, and manufacturing facilities. Featuring a reinforced stacking structure and servo control system, this industrial high speed door delivers rapid opening speeds, superior sealing, and reliable performance in harsh conditions.
Key Features
  • Heavy-Duty Stacking Structure: Stable operation for oversized industrial door openings up to 12 meters
  • High Speed Operation: Opening speeds up to 1.2 m/s for improved logistics efficiency and reduced energy loss
  • Superior Wind Resistance: Rated for Class 6 wind resistance, reinforced to Class 8 for extreme industrial environments
  • Flexible PVC Curtain System: Durable PVC curtain (0.8-1.2 mm) with anti-tear and wear-resistant properties
  • Industrial Grade Servo Control: Advanced DSP servo system ensures precise positioning, stable operation, and extended lifespan
  • Multi-Layer Safety Protection: Comprehensive safety features including infrared sensors, emergency stop, torque protection, and obstacle detection
Technical Specifications
Parameter Description
Maximum Dimensions Door width: 1000mm-12000mm, Door height: 1500mm-12000mm
Operating Speed Opening speed: 0.6-1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8-1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation Manual opening capability using standard wrench during power failure or malfunction
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54 rated for waterproof and dustproof performance in harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional controls: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 0
Installation Requirements
All measurements are taken indoors, with at least three points measured for each value:
  • H - Doorway height: Distance from floor to top of doorway
  • B - Doorway opening width: Distance from left edge to right edge of doorway
  • h - Ceiling clearance: Distance from top of doorway to ceiling (minimum 900 mm)
  • b1/b2 - Side clearance: Distance from doorway edges to obstacles on left/right sides (minimum 350 mm each)
When measuring H and B, use the maximum value as final dimension. When measuring h, b1, and L, use the minimum value as final dimension.
Available Color Options
0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 1
Advanced Control System
  • Servo Control with DSP Chip: High precision control with torque loop, position loop, and speed loop fully closed
  • Encoder Positioning System: Accurate door positioning without electromagnetic brake
  • Fault Detection & LED Display: Real-time error code display for simplified maintenance
  • Multiple Control Options: Radar sensor, loop detector, remote control, pull cord switch, and interlock system
Industrial Applications
  • Steel Plants: Engineered for high temperature, dust-heavy environments with large openings
  • Logistics & Warehousing: Optimizes efficiency for high-frequency forklift traffic
  • Manufacturing Facilities: Ideal for production zones requiring fast and safe separation
  • Heavy Industry Workshops: Handles large equipment access and extreme working conditions
Unique Advantages
  • Designed for Large Openings: Perfect solution for oversized industrial entrances where traditional roll-up doors are insufficient
  • Energy Saving Performance: Fast opening/closing reduces air exchange and minimizes energy loss
  • High Durability: Dustproof, waterproof (IP54), and corrosion-resistant materials for harsh conditions
  • Low Maintenance Cost: Robust structure and intelligent control systems reduce operational downtime
Customization & Manufacturing
  • OEM & ODM Customization: Available custom sizes, colors, materials, and control systems
  • Professional Manufacturing: Full production control from raw materials to finished doors
  • Global Export Experience: Suitable for European, North American, and worldwide industrial markets
Frequently Asked Questions
What is a High Speed Stacking Door?
A vertically stacking industrial fast door designed for large openings and high-frequency operation in demanding industrial environments.
What is the maximum size available?
Up to 12 meters in width and 12 meters in height for large industrial entrances.
Can the door work in strong wind conditions?
Yes, it supports wind resistance up to Class 8 with appropriate reinforcement.

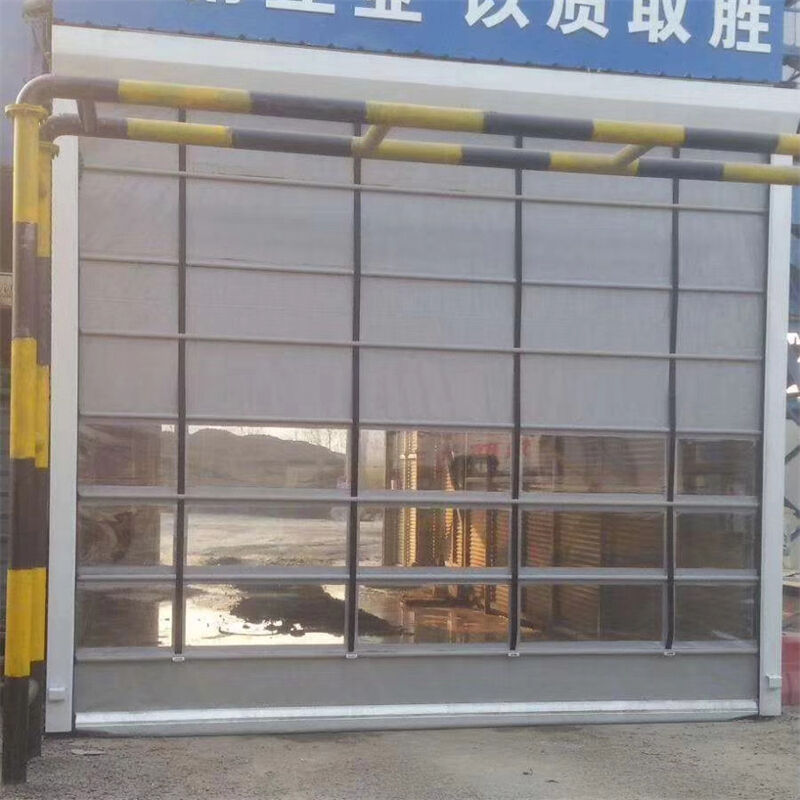

0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 2 0.8–1.2 mm PVC Curtain High Speed Stacking Door with Class 6 Wind Resistance for Industrial Fast Access 3
Tags:

Safety High Speed Stacking Door,

High Speed Industrial Garage Doors,

Insulated Industrial Garage Doors

Quick link
Home Products About Us video Contact Us
Quick Contact

Address

Beihua Huashan Science and Technology Park, Xinbei District, Changzhou City, Jiangsu Province

tel

86--18021983369

18094432968
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Industrial High Speed Door Supplier. Copyright © 2026 Changzhou YOHO Industrial Door Co., Ltd. . All Rights Reserved.
