Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High Speed Freezer Door

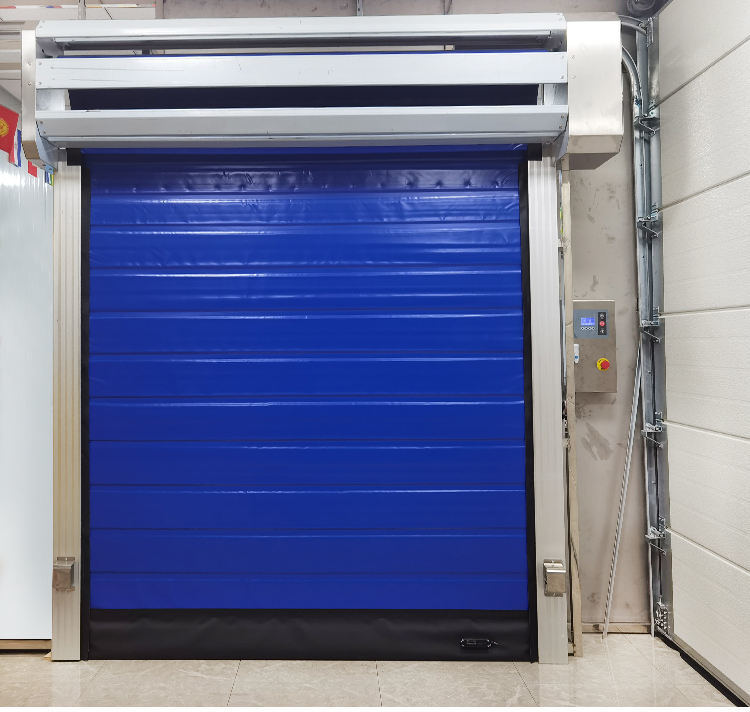

The Pharmaceutical Cold Storage Door is designed for vaccine, medicine, and biological product storage, where maintaining precise temperature and sterile conditions is critical. Ideal for medical cold rooms, this door provides rapid access while ensuring stable low-temperature storage and protecting sensitive products throughout the cold chain.
The medical freezer door combines fast operation, high sealing performance, and clean-room compatible materials, making it suitable for temperature-controlled pharmaceutical storage and ensuring compliance with stringent regulatory standards.
| Parameter | Description |
| Maximum Available Size | Door width: 1000–4000 mm Door height: 1500–4000 mm |
| Dual-Side Track Heating System | Heating wires are installed inside both side tracks to ensure continuous and stable operation of the door curtain in low-temperature environments. |
| Operating Speed | Opening speed: 0.6–1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | The door curtain features a 3+2 composite structure, with thickened insulated curtains on both inner and outer layers and an aluminum foil insulation core. Total curtain thickness: 18–22 mm. |
| Frame Material | Tracks made of aluminum alloy, thickness 2.0 mm Enclosure frame made of 304 stainless steel |
| Sealing Performance | The tracks adopt a nylon + PVC zipper-type wind-resistant curtain system, combined with an airtight bottom sealing structure, ensuring excellent sealing performance. |
| Wind Resistance | Maximum wind resistance Grade 6, upgradable to Grade 8. |
| Manual Operation | In the event of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz IP54-rated control box, compliant with national electrical safety standards. |
| Insulation Protection | IP54 protection ensures dustproof and waterproof performance even in harsh environments. |
Precise Temperature Control
Maintains consistent low temperatures critical for vaccines and medicines.
Clean Room Compatible
Rapid Opening & Closing
Minimizes temperature fluctuation during high-frequency access.
Durable & Low-Temperature Resistant
Engineered for continuous operation in ultra-low temperature environments.
Flexible Control Options
Supports radar sensors, pull cords, ground loops, and remote controls.
Protects Sensitive Products
Preserves efficacy and safety of vaccines, medicines, and biologicals.
Improves Operational Efficiency
Fast door cycles reduce waiting time for staff and equipment.
Energy Efficient
High sealing and rapid operation reduce refrigeration load.
Reliable & Safe
Includes safety sensors and emergency manual operation for continuous access.
Vaccine cold storage rooms
Pharmaceutical freezer warehouses
Biological product cold chain storage
In pharmaceutical storage, precise temperature control is critical. The pharma cold chain door opens and closes rapidly while maintaining tight sealing, preventing temperature deviation that could compromise vaccines or medicines. This design ensures stable storage conditions, reduces energy consumption, and supports regulatory compliance in high-demand medical facilities.
Yes, it is specifically designed for vaccines, medicines, and biological products.
Yes, the materials and design support sterile, GMP-compliant environments.
Fast operation combined with high-quality sealing minimizes cold air loss.
Yes, manual opening is included for power failures or emergencies.
|
|
|
