Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances
  • name
  • name

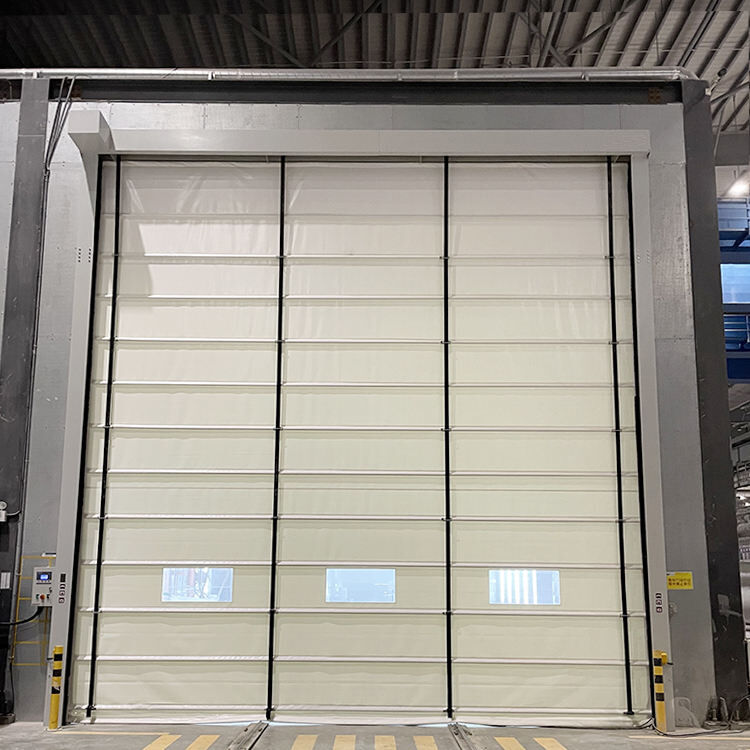

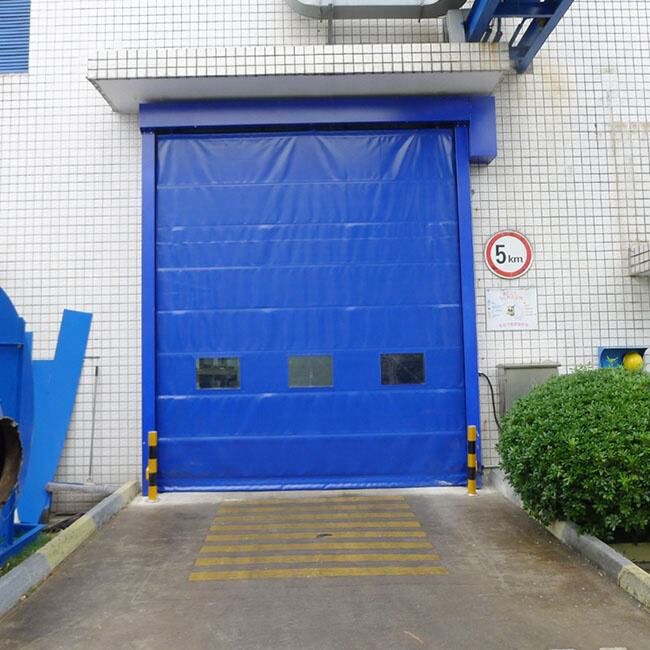

Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Stacking Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness:
0.8–1.2 Mm
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Name:
High-Speed PVC Industrial Door
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Door Width:
1000mm–12000mm
Door Height:
1500mm–12000mm
Opening Speed:
0.6–1.2 M/s (adjustable)
Closing Speed:
0.6 M/s (adjustable)
Application:
Industrial Exterior Entrances
Highlight:

wind resistant industrial high speed door

,

pvc industrial high speed door

Product Description

Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances

Industrial exterior entrances require doors that withstand wind and weather. The High Speed Stacking Door is engineered for outdoor and semi-outdoor use.

The High Speed Stacking Door is a Wind Resistant High Speed Door engineered for industrial outdoor entrances exposed to wind pressure, temperature differences, and frequent vehicle access. As a reliable Industrial High Speed Door, it ensures stability and safety in challenging outdoor environments.

Product Parameters

Parameter Description
Maximum Dimensions Door width: 1000mm–12000mm, Door height: 1500mm–12000mm
Operating Speed Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation In case of power failure or malfunction, the door can be manually opened using a standard wrench
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54, waterproof and dustproof for harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible
Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances 0

Key Features

  • Outdoor-rated stacking structure

  • High wind resistance industrial door design

  • Suitable for large external factory openings

  • Fast opening reduces heat loss and dust ingress

Advantages for Outdoor Use

  • Maintains stable operation under strong wind

  • Reduces environmental impact on indoor areas

  • Durable structure for long-term outdoor exposure

  • Enhances access efficiency for trucks and forklifts

Typical Applications

  • Factory main entrances

  • Industrial park access points

  • Outdoor logistics bays

  • Heavy vehicle passages

Feature Highlight: Wind Resistance

This wind resistant high speed door maintains stability at large exterior openings.

Installation Instructions

All measurements are taken indoors, with at least three points measured for each value:
H – Doorway height (distance from the floor to the top of the doorway)
B – Doorway opening width (distance from the left edge to the right edge of the doorway)
h – The distance from the top of the doorway to the ceiling, which must be at least 900 mm.
b1/b2 – The distance from the corresponding edge of the doorway to the obstacle on the left/right side, which must be at least 350 mm.
When measuring H and B, the maximum value is taken as the final dimension;
When measuring h, b1, and L, the minimum value is taken as the final dimension.

Various  of  colors to choose

Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances 1

FAQ

Q1: Is it suitable for outdoor installation?
Yes, it is designed as an Outdoor High Speed Door.

Q2: How does it perform in strong wind?
The stacking structure offers superior wind resistance.

Q3: Can it be used for large openings?
Yes, it is ideal for large industrial entrances.

Q4: Is maintenance complicated?
No, it is designed for low maintenance.

Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances 2

Wind Resistant High Speed Stacking Door With Motorized Drive And Heavy Duty Finish For Industrial Exterior Entrances 3
