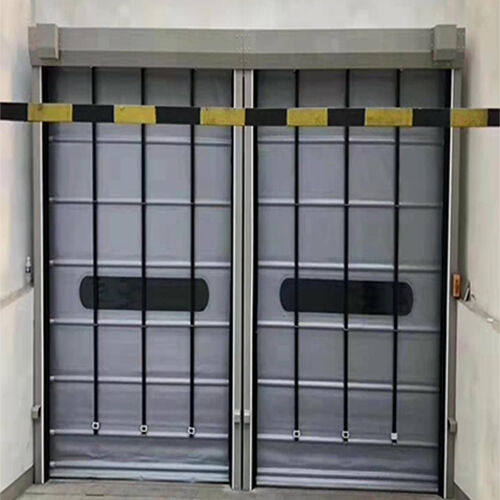

Wind Resistant High Speed Stacking Door 0.6m/s–1.2m/s For Office Logistics Channels

Wind Resistance Up To Class 6 High Speed Stacking Door For Office Logistics Channels

The High Speed Stacking Door for office logistics channels is specifically designed for indoor service corridors, logistics passages, and back-of-house areas in office buildings and business complexes.

In modern office environments, logistics channels must support frequent movement of carts, documents, cleaning equipment, and maintenance personnel while maintaining quiet operation, safety, and energy efficiency. This High Speed Stacking Door provides fast opening, stable performance, and reliable safety protection, making it ideal for high-frequency indoor logistics use.

Product Parameters

Product Advantages

Smooth and Efficient Logistics Flow

• Fast opening and closing improves efficiency in office logistics corridors

• Reduces congestion during peak service and maintenance hours

Safe for Personnel and Equipment

• Infrared safety sensors and bottom safety edge protect staff and transport carts

• Automatic rebound prevents damage or injury

Energy Saving & Environment Control

• Tight sealing minimizes air exchange between office zones

• Helps maintain stable indoor temperature and air quality

Quiet and Reliable Operation

• Servo motor system ensures smooth, low-noise performance

• Ideal for office environments requiring reduced operational noise

Product Features

Door Structure & Materials

• Maximum Dimensions: Width 1000–12000 mm, Height 1500–12000 mm

• Curtain Material: 0.8–2.0 mm PVC, colors: Blue, Orange, Gray

• Frame Material: Galvanized steel with powder coating; optional stainless steel

• Wind Resistance: Class 6 (reinforced up to Class 8)

Operating Speed

• Opening Speed: 0.6–1.2 m/s (adjustable)

• Closing Speed: 0.6 m/s (adjustable)

Control & Safety System

• DSP-based servo control system with fully closed torque, position, and speed loops

• LED display for fault codes and system status

• Direction protection prevents incorrect motor wiring

• Manual emergency opening via standard wrench

• Pre-reserved ports for radar sensor, loop detector, pull cord, remote control, and interlock

Applications

The High Speed Stacking Door is widely used in office logistics channels such as:

• Office building back-of-house corridors

• Internal logistics passages for document and supply transport

• Cleaning and maintenance access routes

• Service areas connecting parking, storage, and office floors

• Indoor passages requiring quiet, safe, and efficient door operation

Frequently Asked Questions (FAQ)

Is this door suitable for quiet office environments?

Yes. The servo-driven system provides smooth, low-noise operation, making it suitable for office logistics areas.

Can it handle frequent daily use?

Absolutely. The motor and control system are designed for thousands of cycles per day, ideal for high-frequency office logistics.

Is it safe for carts and personnel?

Yes. Infrared sensors and a bottom safety edge ensure automatic stop and rebound when obstacles are detected.

Can control methods be customized?

Yes. Radar sensors, pull cord switches, remote control, loop detectors, and interlock systems are all supported.

Key Feature Highlight: High-Frequency Servo Control for Office Logistics

The servo motor control system is a critical advantage in office logistics channels:

• Maintains precise stopping positions without electromagnetic brakes

• Provides constant torque output for safe operation with infrared protection

• Ensures fast response and smooth movement, even during peak usage

• Supports continuous operation while minimizing wear and maintenance

This makes the High Speed Stacking Door a reliable solution for demanding office logistics environments.
