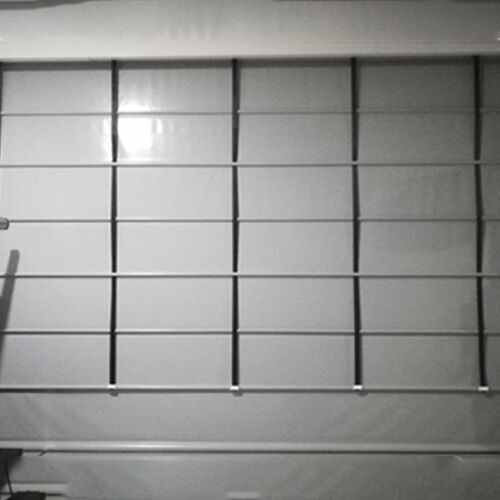

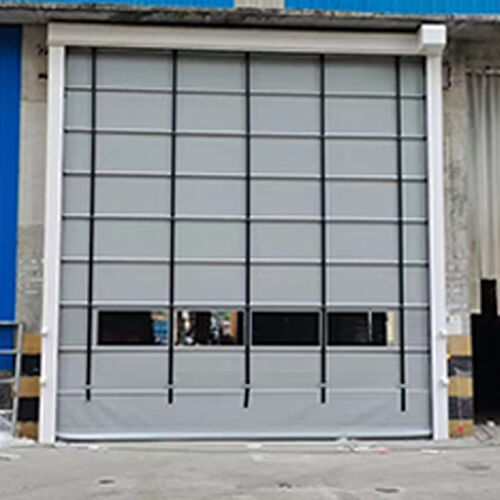

Adjustable Speed High Speed Stacking Door IP54 For Large Commercial Centers

Adjustable Door Speed High Speed Stacking Door For Large Commercial Centers

The High-Speed Stacking Door for large commercial centers is designed to facilitate smooth, rapid access while maintaining energy efficiency and environmental control. Ideal for internal passageways, loading bays, and high-traffic corridors, this door ensures fast opening and closing to reduce waiting times for personnel, carts, or logistics operations. The durable PVC curtain, reinforced frame, and tight sealing prevent dust and drafts, while the compact stacking design maximizes space. Equipped with advanced servo motor control and multiple safety features, this door enhances operational efficiency, protects staff and goods, and provides reliable performance in commercial and public facility environments.

Product Parameters

Product Features

• Maximum Dimensions: Width 1000–12000 mm, Height 1500–12000 mm

• Operating Speed: Opening 0.6–1.2 m/s (adjustable), Closing 0.6 m/s (adjustable)

• Door Curtain Material: 0.8–2.0 mm thick PVC; colors: Blue, Orange, Gray

• Frame Material: Powder-coated galvanized steel standard; optional stainless steel

• Sealing Performance: Brush seals on tracks; EPDM bottom seal for energy saving and dust protection

• Wind Resistance: Up to Class 6, reinforced to Class 8 available

• Manual Operation: Can be manually opened during power failure using a standard wrench

• Power Supply: Three-phase 380V/50Hz, IP54 control box, waterproof and dustproof

Control & Automation Features

• Opening/Closing Control: Standard one-button operation; optional radar sensor, loop detector, pull cord switch, or remote control

• Pre-reserved Ports: Infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock

• Servo System: DSP chip core, incremental encoder, limit switch signals, LED fault display, torque/position/speed loops, precise stopping without electromagnetic brake

Drive Motor Features

• Servo motor system with encoder, gearbox, brake, and emergency manual operation

• Constant torque output ensures smooth operation and rapid rebound for safety

• High overload capacity; supports thousands of cycles per day for high-traffic areas

Safety Features

• Infrared Safety Protection: Photoelectric sensors detect objects; door reopens fully if obstruction is detected

• Bottom Safety Edge: Rebounds immediately on contact, preventing accidents with personnel or equipment

• Emergency stop and torque protection integrated

Applications

The High Speed Stacking Door is ideal for large commercial centers:

• Internal service corridors and maintenance areas

• Loading/unloading zones for delivery and supply operations

• High-traffic connections between different sections of the building

• Areas requiring fast, safe, and frequent door operation

• Indoor passages needing energy-saving solutions

FAQ

Can this door be used outdoors in commercial centers?

It is designed for indoor ambient-temperature areas, but can handle mild air pressure and Class 6 wind conditions if needed.

Is it safe for high-traffic commercial areas?

Yes. Integrated infrared sensors and bottom soft edge protect personnel, equipment, and goods.

Can the door size and frame material be customized?

Yes. Width, height, curtain thickness, and frame material (galvanized steel or stainless steel) can all be tailored to your facility.
